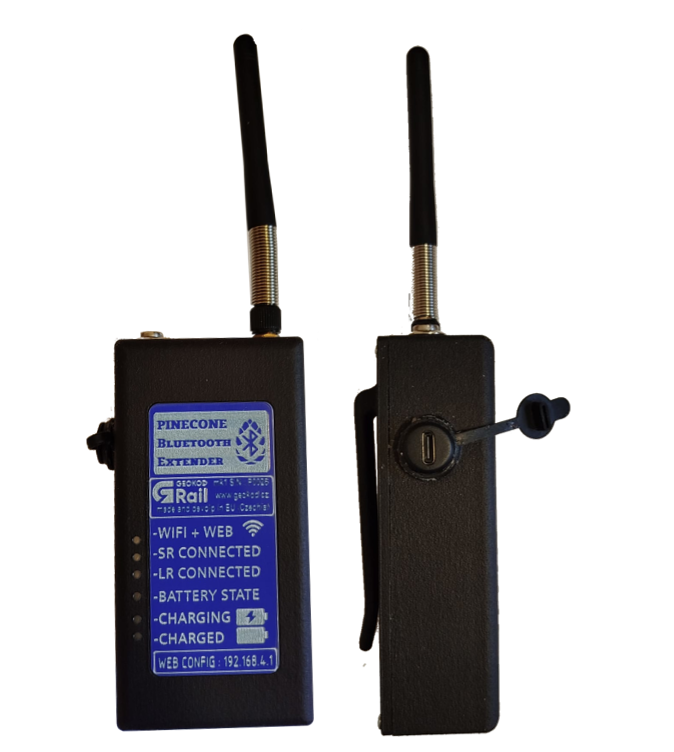

PINECONE - BT EXTENDER

The device works as a Bluetooth extender for wireless connection of a phone, computer or tablet with a measuring device (total station, GNSS receiver) over a long distance.

Features

• Extends the Bluetooth connection range between the measuring instrument and the controller up to 600 m
• Automatic reconnection to the last paired remote module after power-on
• Simple configuration via WiFi and a web interface (Captive Portal) – no app installation required
• Clear LED indication of connection, WiFi and battery status
• Rugged design with IP55 protection, USB-C charging, 3400 mAh battery capacity
• Power-saving mode (Deep Sleep) to extend battery life
• Designed and manufactured in the Czech Republic and the EU

Technical specifications

Long Range (LR) Bluetooth range: 600 m (line of sight)
Short Range (SR) Bluetooth range: 10 m (line of sight)
Configuration WiFi range: 5 m (line of sight)
Battery capacity: 3400 mAh
Charging: USB-C 5 V (min. 300 mA)
Ingress protection: IP55 (dust-tight, splash-proof)
Controls: Power on/off button, WiFi with web interface for configuration

The system is designed for total stations and GNSS receivers with a Bluetooth interface.
