TrackMaster CFG

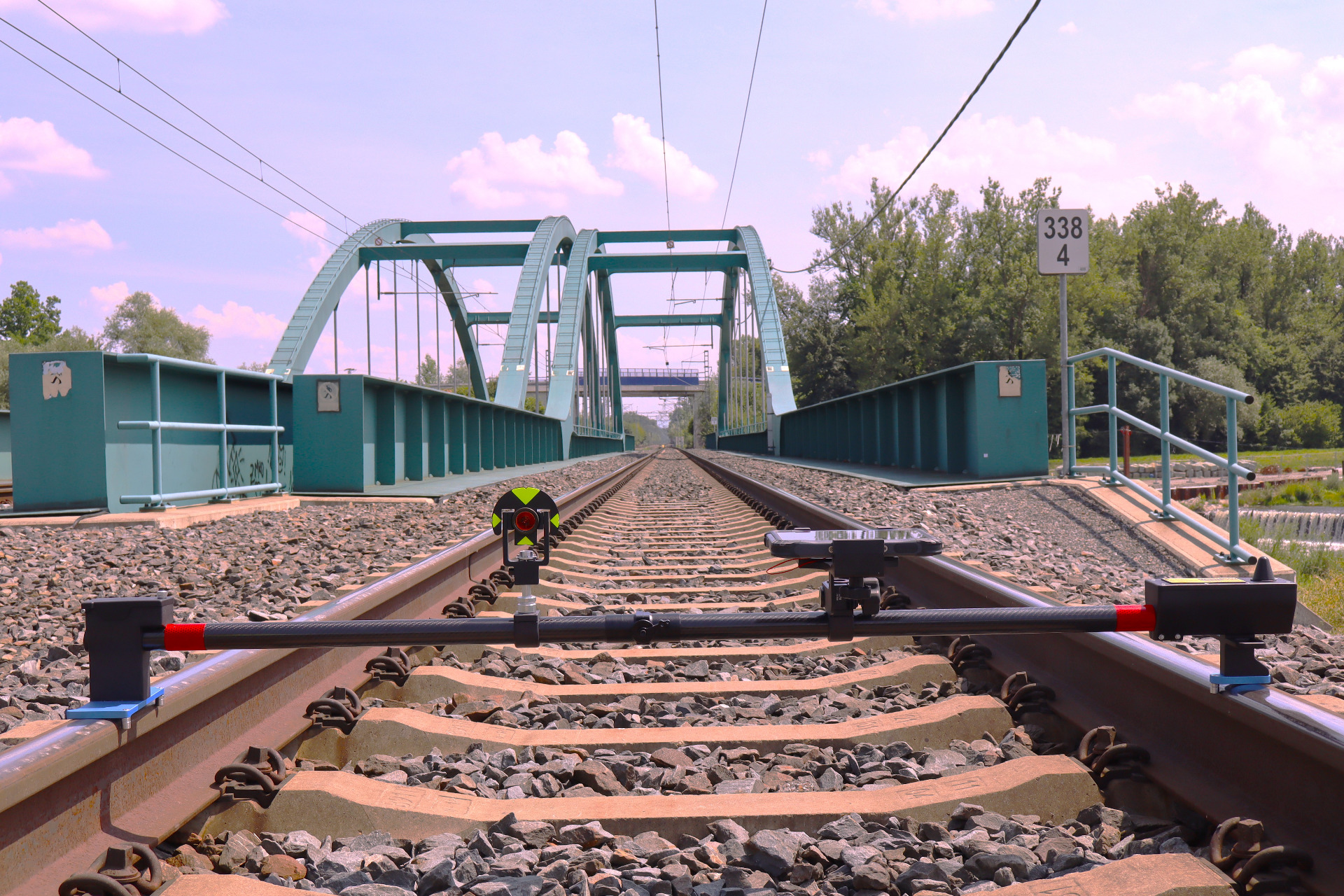

TrackMaster CFG is a digital track gauge for measuring track gauge and cant, and for determining the spatial position of the track using a total station or a GNSS receiver.
The gauge is an ideal solution for slab track measurements when a track measuring trolley cannot be used due to the chosen construction method. It records the three-dimensional position of the track together with the gauge and cant in a single work step. It can also serve as an alternative to a measuring trolley on projects with little construction progress and few track sections to be measured.
Although the CFG is primarily designed for surveying applications, it remains a track gauge that can also be used for routine diagnostic work such as measuring track gauge and cant, together with an Android app running on a mobile phone that displays the measured values and allows their recording and export.
Applications
- As-built of existing railway lines
- Track installation and track control for slab track projects
- Measurement in sections where a measuring trolley cannot be used
Key benefits
- Recording of track spatial position, gauge and cant in a single work step
- Positioning with a total station or a GNSS receiver
- Wireless (Bluetooth) communication with the control unit
- Easy, ergonomic handling thanks to low weight
- Designed and manufactured in the Czech Republic and the EU
Description of the CFG
- Lightweight carbon fiber construction
- Foldable design for easy transport (fixed design also available)
- Easy to operate and handle
- Replaceable battery
- LongRange Bluetooth module for communication at distances of up to 300 m
- User-adjustable prism position
- On-site operational calibration of the meter via a web interface
- User-adjustable track gauge measurement location
- Available for all track gauges from 500 to 1800 mm
- Option to mount the controller on the track gauge
- Compatible with Leica Captivate and GEOKOD RailSURV software
- Android app for recording and displaying basic measured parameters
CFG specifications
- Gauge: −25 / +50 mm, measurement repeatability ±0.2 mm
- Cant: ±10° (260 mm / 1500 mm), measurement repeatability ±0.4 mm
- Dimensions: 1600 × 272 × 252 mm
- Weight: 1.95 kg
- Battery life: 8 hours
- Battery type: Leica GEB 212
- Operating temperature: −10°C to +50°C
